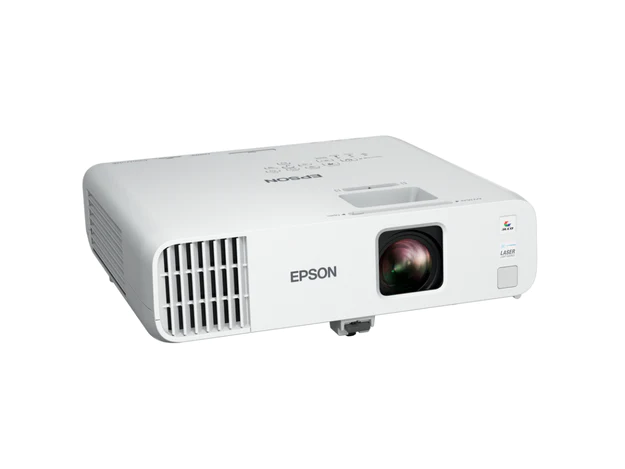

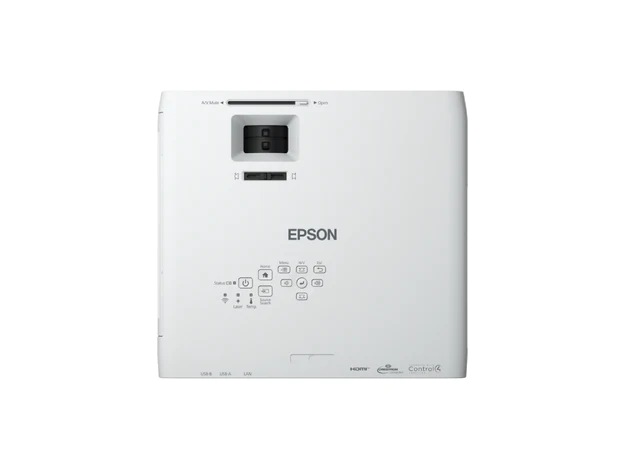

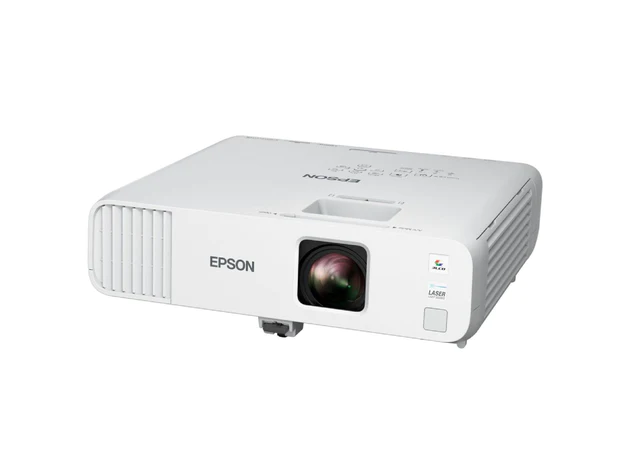

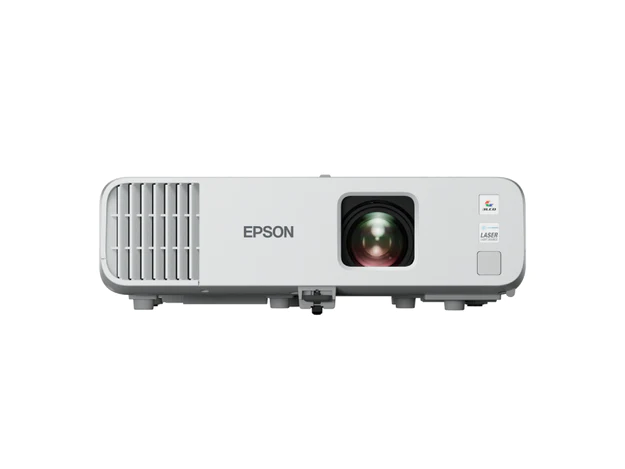

- 4,200-lumen brightness laser display Crisp images and bright colours, even in well-lit rooms
- Laser projector Virtually maintenance-free performance for up to 30,000 hours (Eco)
- Stream and share Wireless LAN, Screen Mirroring and dual HDMI for easy integration and built-in 16W speakers
- Fit and forget reliability Durable Epson laser technology supported with additional peace of mind with our five-year warranty
- The complete solution Incredible 2,500,000:1 contrast ratio for vivid, lifelike content and deeper blacks
Technical Specification
Technology:
- Projection System: 3LCD Technology, RGB liquid crystal shutter
- LCD Panel: 0.59 inch with C2 Fine
Image:
- Color Light Output: 4,200 Lumen- 2,940 Lumen (economy) In accordance with IDMS15.4
- White Light Output: 4,200 Lumen - 2,940 Lumen (economy) In accordance with ISO 21118:2020
- Resolution: WXGA 2
- High Definition: HD ready
- Aspect Ratio: 16:10
- Contrast Ratio: 2,500,000 : 1
- Light source: Laser
- Laser Light source: 20,000 hours Durability High, 30,000 hours Durability Eco
- Keystone Correction: Auto vertical: ± 30 °, Manual horizontal ± 30 °
- 2D Vertical Refresh Rate: 100 Hz - 120 Hz
- Colour Reproduction: Upto 1.07 billion colours
Optical:
- Throw Ratio: 1.38 - 2.24:1
- Zoom: Manual, Factor: 1 - 1.62
- Projection Lens Zoom Ratio: 1.38 - 2.24 : 1
- Lens: Optical
- Screen Size: 29 inches - 282 inches
- Projection Lens F Number: 1.51 - 1.99
- Projection Lens Focal Length: 18.2 mm - 29.2 mm
- Projection Lens Focus: Manual
- Offset: 10 : 1
Connectivity:
- USB Display Function: 2 in 1: Image/ Sound
- Interfaces: USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN a/n (5GHz), Wi-Fi Direct, VGA in (2x), VGA out, Composite in, Miracast, Jack plug out, Jack plug in (2x), Cinch audio out, Microphone input, HDMI (HDCP 2.2) (2x)
- Epson iProjection App: Ad-Hoc / Infrastructure
- Network Protocol: PJLink
Advanced Features:
- Security: Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock
- 2D Colour Modes: Dynamic, Cinema, Presentation, sRGB, Blackboard
- Other features
- AV Mute Slide, Auto Power On, Built-in speaker, Document Camera Compatible, Home Screen, Long light source life, Mute key, OSD copy function, PC Free, Quick Corner, Screen Mirroring, Split-Screen-Function, Wireless LAN capable, iProjection App, iProjecton set-up by QR code
- Video Color Modes: Cinema, Dynamic, Presentation, sRGB, DICOM SIM
- Projector control: via: AMX, Crestron, Control4, Extron
General:
- Power consumption: 254 Watt, 193 Watt (economy), 0.5 Watt (standby), On mode power consumption as defined in JBMS-84 198 Watt
- Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
- Product dimensions: 325 x 299 x 90 mm (Width x Depth x Height)
- Product weight: 4.1 kg
- Noise Level: Normal: 37 dB (A) - Economy: 28 dB (A)
- Supported Temperature: Storage -10° C - 60° C
- Supported Humidity: Operation 20% - 80%, Storage 10% - 90%
- Included Software: EasyMP Multi PC Projection, Epson Projector Management
- Options: Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Soft carry case, Suspension adapter, WP System - ELPWP10, Wireless transmitter - ELPWT01
- Loudspeaker: 16 Watt
- What's in the box: HDMI Cable 1.8m, Main unit, Power cable, Remote control incl. batteries
- Room Type / Application: Boardroom, Home Office, Large Meeting Room / Auditorium, Meeting room / Classroom
- Positioning: Ceiling Mounted, Desktop
- Colour: White
