JBL BAR500 Pro 5.1 Channel Soundbar with Multibeam Dolby Atoms - Black

• Dolby Atmos® and MultiBeam™ surround sound
• 10” wireless subwoofer
• PureVoice dialogue enhancement technology
• 590W output power
• Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and
• Chromecast built-in™
• Works with voice assistant-enabled speakers
• HDMI eARC with 4K Dolby Vision passthrough
• Easy sound calibration

Warranty 1 Year

Features and Benefits

Dolby Atmos® and MultiBeam™ surround sound
Immerse yourself in theater-quality 3D surround sound. Hear extraordinary sound effects from everywhere in
the room, without the need for extra surround speakers.

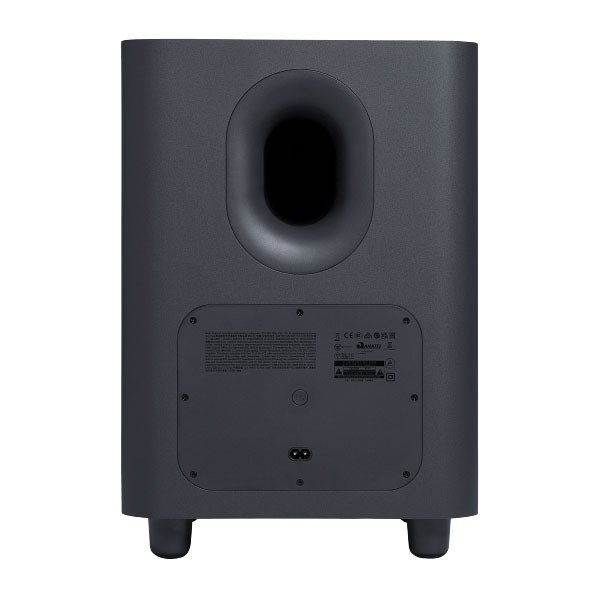

10” wireless subwoofer
Thrilling, precise bass from a mighty 10” wireless subwoofer brings the action to your movies and the emotion
to your music.

PureVoice dialogue enhancement technology
PureVoice technology uses our unique algorithm to optimize voice clarity to ensure you never miss a word of
dialogue, even when the surround effects are at their peak.

590W output power
With 590 watts of total system output power, the JBL Bar 500 transforms your movies, music and games into
immersive sound experiences.

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and
Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition.
The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.

Works with voice assistant-enabled speakers
Simply link the JBL Bar 500 with your voice assistant-enabled device and you can instantly ask Alexa, Google
Assistant, or Siri to stream all your favorite music to the soundbar.

HDMI eARC with 4K Dolby Vision passthrough
Enjoy uncompressed Dolby Atmos surround sound through a single HDMI cable thanks to the HDMI eARC
connection. The HDMI input connection also offers 4K video quality from a compatible video player or gaming
console.

Easy sound calibration
Every room is different. Our audio calibration feature ensures that the JBL Bar 500 delivers the best 3D
surround effects for any interior and room layout.

JBL One App
Customize EQ and control all of your compatible speakers with a single convenient app. The JBL One app
helps you easily set up the soundbar, personalize settings, and browse the integrated music services to find
your new favorite song

Amazing 3D sound with thrilling bass
What’s on the menu tonight? Movies, music or gaming? The JBL Bar 500
brings your movies to life with MultiBeam™ and Dolby Atmos® 3D surround
sound. While PureVoice technology optimizes voice clarity to ensure you never
miss a word. Feel the thrilling bass from the wireless 10” subwoofer. And with
AirPlay, Alexa Multi-Room Music (MRM) and Chromecast built-in™, you’ve got
over 300 easy streaming options to choose from, whether you want to dance
or you’re ready to relax. Whatever you’re in the mood for, the JBL Bar 500’s
got you covered.

What’s in the box:
1 x Main Soundbar
1 x Wireless subwoofer
Remote control with 2 x batteries
Power cords (up to 8pcs depending on region SKUs)
1 x HDMI cable
2 x L-shape wall-mount bracket with screws
Quick start guide
Safety Instruction and Warranty Card
Wall mount template

• General specification
  Model: BAR 500 (soundbar unit)
  BAR 500 SUB (subwoofer unit)
• Sound system: 5.1 channel
  Total speaker power output (Max @THD 1%): 590W
  Power supply: 100 – 240V AC, ~ 50/60Hz
  Soundbar output power (Max @THD 1%): 290W
  Subwoofer output power (Max @THD 1%): 300W
  Soundbar transducer: 4x (46×90)mm racetrack drivers, 3x
  0.75” (20mm) tweeters
  Subwoofer transducer: 10” (260mm)
  Networked standby power: < 2.0 W
  Operating temperature: 0°C – 45°C
• HDMI specification
  HDMI input: 1
  HDMI eARC: 1
  HDMI HDCP version: 2.3
  HDR pass through: HDR10, Dolby Vision
• Audio specification
  Frequency response: 35Hz – 20kHz (-6dB)
  Audio inputs: 1 Optical, Bluetooth, USB (USB playback is
  available in US version. For other versions, USB is for Service
  only.)
• USB specification:
  USB port: Type A
  USB rating: 5V DC, 0.5A
  Supported file format: MP3
  MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3,
  MPEG 2.5 Layer 3
  MP3 sampling rate: 16 – 48 kHz
  MP3 bitrate: 80 – 320 kpbs
• Wireless specification
  Bluetooth version: 5.0
  Bluetooth profile: A2DP 1.2, AVRCP 1.5
  Bluetooth transmitter frequency range: 2400MHz –
  2483.5MHz
  Bluetooth transmitter power: <15 dBm (EIRP)
  Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
  2.4G Wi-Fi transmitter frequency range: 2412 – 2472 MHz
  (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13
  Channels)
  2.4G Wi-Fi transmitter power: < 20 dBm (EIRP)
  5G Wi-Fi transmitter frequency range: 5.15 – 5.35GHz,
  5.470 – 5.725GHz, 5.725 – 5.825GHz
  5G Wi-Fi transmitter power: <23dBm (EIRP)
  2.4G wireless transmitter frequency range:
  2406 – 2474MHz
  2.4G wireless transmitter power: <10dBm (EIRP)
• Dimension
  Soundbar dimensions (W x H x D): 1017 x 56 x 103.5 mm /
  40’’ x 2.2’’ x 4’’
  Soundbar weight: 2.8kg/ 6.2 lbs
• Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm /
  12” x 17.3” x 12”
  Subwoofer weight: 10 kg / 22 lbs
  Packaging dimensions (W x H x D): 1105 x 370 x 475 mm/
  43.5” x 14.6” x 18.7”
  Packaging Weight: 16.2 kg / 35.6 lbs
